Y-Spring Check Valve Threaded
Company Info |
|
| Company Name | Hebei Guanyu Stainless Products Co., Ltd |
| Country/Territory: | Hebei China |
| Business Type: | | 1,3,4,6,8,9 |
| Number of Employees: | |
| Main Products: ball valve check valve pipe fittings sanitary valve vessel part | |
>> Details:

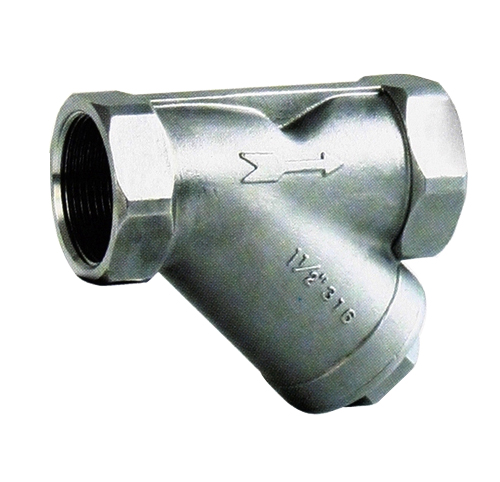

Y-SPRING CHECK VALVE THREADED
MODEL: YCT-800 (ANSI 800PSI)
MATERIAL LIST:
ITEM | DESIGNATION | MATERIAL |
1 | BODY | CF8/CF8M |
2 | DISC SEAT | PTFE |
3 | DISC | CF8/CF8M |
4 | GASKET | PTFE |
5 | BONNET | CF8/CF8M |
6 | SPRING | 304 |
PARAMETERS:
Item/size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
L | 65 | 65 | 65 | 80 | 90 | 105 | 120 | 140 |
H1 | 35 | 35 | 35 | 45 | 57 | 58 | 66 | 77 |
