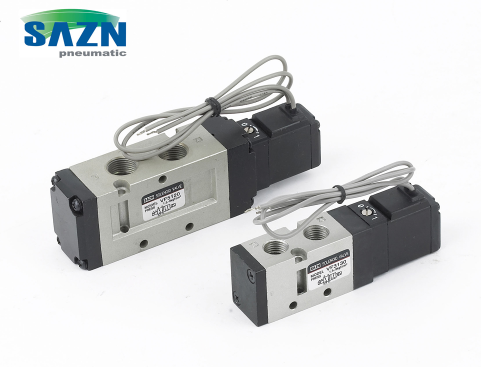

VF solenoid valve are of models introduced from japan and are characterized by low power comsumption, goods resistantce to wear and quick response.
VF series solenoid valve
1. The size is same as SMC's VF series.
2. Introduced from JAPAN
3. Position: Two and three
VF |
|
|
|
COMMON SPEC |
|
|
|
Using fluid |
Air |
Environment& fluid temp |
MaX50oC |
Oil feed |
Do not need |
Manual operation |
Locking-type after screw driver press down |
Resistance to shock |
30G/5G(8.3--2000HZ) |
Protection structure |
Dust proof |
Maganetic coil spec |
|
|
|
Wire leadout type |
Direct wire out type(G) DIN-shape socket type(D) |
Standard voltage |
Ac: 110v 220v DC: 12V 24V |
Allowable voltage range |
Rated volatge-15%-+10% |
Insulation resistance |
Bgrade or equivalence |
Power consumption |
Starting: 5.6va, keeping: 3.4VA |
1.8W/2W(with indicate lamp) |
Overvoltage suppressor |
AC: pressure-senstive resistence DC: diode |
Indicator lamp |
AC: neno lamp DC: light emitting diode |
Type |
position number |
Function |
Working pressure range(MPA) |
Response time (m) |
The highest action frquence(times/sec) |
Tube size |
Avaialabe section area(CV valve) |
Weight(g) |
VF3130 |
2 |
Single |
1.5-9 |
30 or less |
5 |
G1/4 |
17.1(0.95) |
0.21 |
VF3230 |
2 |
Double |
1--9 |
30 or less |
5 |
G1/4 |
17.1(0.95) |
0.29 |
VF3330 |
3 |
Middle closing |
1--9 |
50 or less |
3 |
G1/4 |
13.5(0.75) |
0.42 |
VF3430 |
3 |
Middle exhaust |
1--9 |
50 or less |
3 |
G1/4 |
17.1(0.95) |
0.42 |
VF3530 |
3 |
Middle pressurizing |
1--9 |
50 or less |
3 |
G1/4 |
16.2(0.9) |
0.42 |
VF5120 |
2 |
Single |
1.5-9 |
30 or less |
5 |
G1/4 |
17.1(0.95) |
0.21 |
VF5220 |
2 |
Double |
1--9 |
30 or less |
5 |
G1/4 |
17.1(0.95) |
0.29 |
VF5330 |
3 |
Middle closing |
1--9 |
50 or less |
3 |
G1/4 |
13.5(0.75) |
0.42 |
VF5430 |
3 |
Middle exhaust |
1--9 |
50 or less |
3 |
G1/4 |
17.1(0.95) |
0.42 |
VF5530 |
3 |
Middle pressurizing |
1--9 |
50 or less |
3 |
G1/4 |
16.2(0.9) |
0.42 |
