Vf Solenoid Valve

  • MOQ:15
  • Delivery Period:15 days
Company Info

Company Name Zhejiang Sazn Pneumatic Co., Ltd.
Country/Territory: Zhejiang China
Business Type: | 1,3,9
Number of Employees:
Main Products: machinery light industry & dai auto parts & accesso sporting chemicals

>> Details:

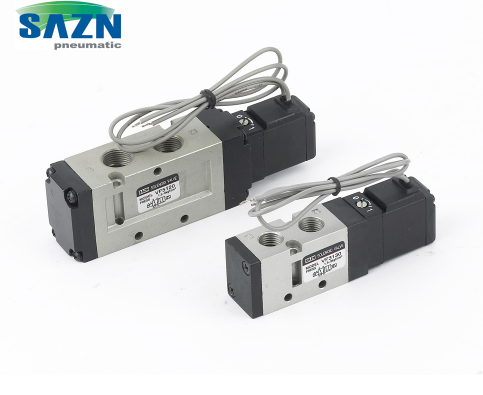

VF solenoid valve are of models introduced from japan and are characterized by low power comsumption, goods resistantce to wear and quick response.

VF series solenoid valve
1. The size is same as SMC's VF series.
2. Introduced from JAPAN
3. Position: Two and three
































VF
COMMON SPEC
Using fluid Air
Environment& fluid temp MaX50oC
Oil feed Do not need
Manual operation Locking-type after screw driver press down
Resistance to shock 30G/5G(8.3--2000HZ)
Protection structure Dust proof




















































































Type position number Function Working pressure range(MPA) Response time (m) The highest action frquence(times/sec) Tube size Avaialabe section area(CV valve) Weight(g)
VF3130 2 Single 1.5-9 30 or less 5 G1/4 17.1(0.95) 0.21
VF3230 2 Double 1--9 30 or less 5 G1/4 17.1(0.95) 0.29
VF3330 3 Middle closing 1--9 50 or less 3 G1/4 13.5(0.75) 0.42
VF3430 3 Middle exhaust 1--9 50 or less 3 G1/4 17.1(0.95) 0.42
VF3530 3 Middle pressurizing 1--9 50 or less 3 G1/4 16.2(0.9) 0.42
VF5120 2 Single 1.5-9 30 or less 5 G1/4 17.1(0.95) 0.21
VF5220 2 Double 1--9 30 or less 5 G1/4 17.1(0.95) 0.29
