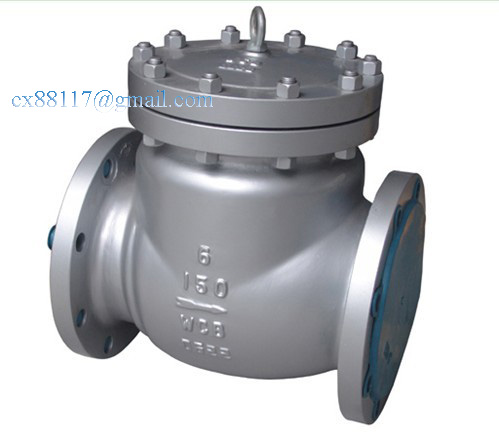

JIS swing check valve
Company Info |
|
| Company Name | China¡€Dongjin Valve Co.,Ltd. |
| Country/Territory: | Zhejiang China |
| Business Type: | | 1; |
| Number of Employees: | |
| Main Products: ball valve gate valve check valve globe vlave y filter | |
>> Details:

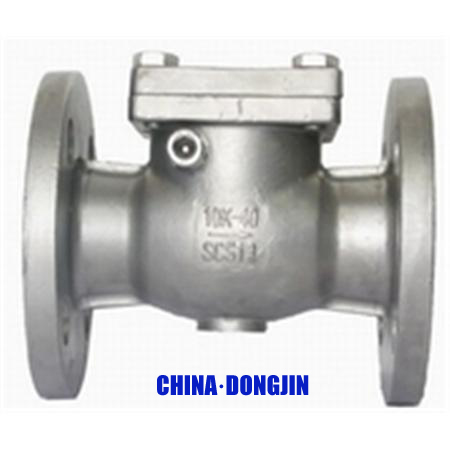

JIS swing check valve
Working Pressure 10K 20K
Applicable temperature:-29 550C
Oil, chemical industry, power station, and so on.
Medium: Water, Oil, Gas, etc.
JIS Swing check valve Structure and distinguishing feature
1.The selection is elegant, tallies domestic, outside is related the standard, the material comprehensive quality is high.
2 Seals the vice-pair advanced reasonable, the valve petal, the valve seat packing surface use the iron-base alloy or the department too vertical (Satellite) cobalt base hard alloy built-up welding surface become, wear-resisting, thermos table, anti-corrosive, the anti-abrasion performance is good, the service life is long
3 standard designs: According to ANSI B16.34.
4 May use each kind of tubing flange standard and the flange seal pattern, satisfies each kind of project to need and the user request.
JIS Swing check valve
Type | Check valve |
Design Standard | APl6DJlS B2074-2084 |
Face to face | ANSIB16.10,JISB2002 |
Flange | ANSI B16.5 JISB2212-2214 |
Ends | ANSlB16.25 |
Checking | APl6 / APl598,JlSB2003 |
4.JIS Check valve for testing standard
Class | Shell Test Map | Seat Test Map | |
High-Pressure Liquid Sealing | Low-Pressure Hermetic Sealing | ||
150Lb PN2.0MPa | 2.94 | 2.16 | 0.6 |
300Lb PN4.0MPa | <span style="ms | ||
