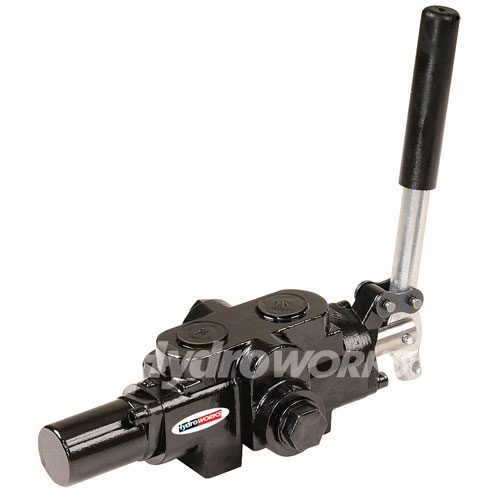

Log Splitter Control Valve
Company Info |
|
| Company Name | Intradin (Shanghai) Machinery Co., Ltd. |
| Country/Territory: | Shanghai China |
| Business Type: | | 1 |
| Number of Employees: | |
| Main Products: control valve fuel transfer pump waste oil drainer pneumatic oil pump pneumatic pump | |
>> Details:
-Constructed of high tensile strength gray cast iron
-Built-in adjustable relief valve
-Hard chrome plated spool
Recommended hydraulic system:
-Maximum tank pressure: 500 psi
-Maximum operating temperature: 180 oF
-Recomended system filtration: 10 micron
-Maximum GPM: 30
-Maximum operating pressure : 3,265 PSI
-I/O Ports: 3/4" NPT
-Working Ports: 1/2" NPT
-Spool action is spring center/hydraulic kick-off
-Built-in relief valve preset at 2,250 PSI
-Kick-off pressure is non-adjustable, preset at 800 PSI
