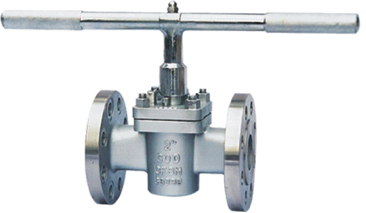

Stainless Steel Plug Valve
Company Info |
|
| Company Name | Shanghai Kangquan Valve Co., Ltd. |
| Country/Territory: | Shanghai China |
| Business Type: | | 1,2,9 |
| Number of Employees: | |
| Main Products: gate valve ball valve check valve globe valve control valve | |
>> Details:
Sleeve type soft sealing plug (DIN) is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc under nominal pressure of PN1.6~16Mpa, and working temperature of -29oC~180oC.1. The product has reasonable structure, reliable sealing, excellent performance and beautiful
appearance.
1. Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition that is glutinous and apt to smudge.
2. Its characteristic double-direction flow makes installation and sue more convenient.
3. The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
The size of serial valve connecting flange can be designed according to customers'requirement.
Main technical data
Nominal pressure(MPa) | Shelltest(MPa) | Sealingtest(MPa) | Suitable temp | Suitable medium |
1.6 | 2.4 | 1.76 | -29~180oC | Water, oil & |
2.5 | 3.75 | 2.75 | ||
4.0 | 6.0 | 4.40 | ||
6.4 | 9.6 | 7.04 | ||
10.0 | 15.0 | 11.0 | ||
16.0 | 24.0 | 17.6 |
