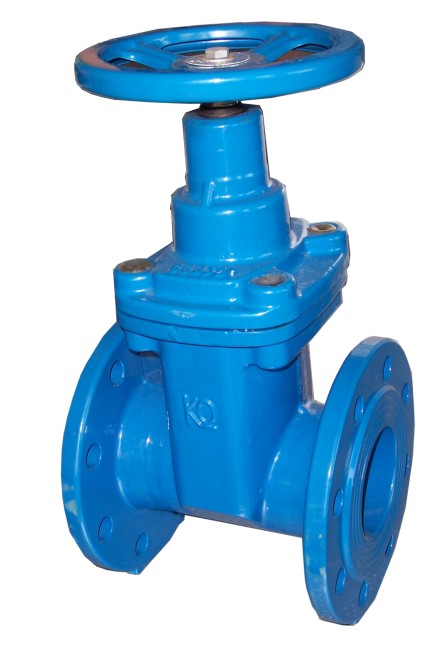

Non Rising Stem Resilient Seat Gate Valve

BRIEF INTRODUCTION:

The non rising stem gate valve, the whole body of strobe is treated with rubber up to good seal conquering bad seal, slack, rustiness and so on and saving installation space effectively.  This valve widely applied in the liquid pipes for open or close fixed in such water, sewage disposal, electric power, energetics pipe, chemical, shipping, energy sources etc.

FEATURES

Shot-blasting

protective surface finished by shot-blasting and the surface is smooth and neatness.

Flatting seat

Smooth continuous bore way without seating recess, it is not easy to get impurity pilled up.

Making the liquid straightway.

Treating with rubber

Both inner and outer are coated with advanced knowledge of rubber vulcanization to the elasticity of rubber, and making sure the exact geometry dimension. Rubber and ductile cast iron valve are together hardly. This can avoid fall-off for long-term use.

Anti- corrosion

Both inner and outer are coated with non-toxic powder epoxy resin to strengthen the capacity of Corrosion resisting and raise the quality of water supply.

Ruggedization

The older ductile iron valve is easy to rupture after being impacted by nonego. It can stop

rupture depend on the good mechanics capability of ductile iron .

Three "" sealed ring

With the three O ¨C rings, the leakage can be greatly reduced and the O ¨C ring can be

replaced under this condition with pressure and without stopping water. The thrust axletree

reduces the frictional resistance and lowers the operational torque. And it can be switch seal

ring without opening and closing.

Rigid round body

The body is founded minutely, the rigid geometry size ensure inner sealing of valve without any process.

Light weight

This body is made of ductile iron, it is 20%-30% lighter than the olds. Easy to fix and serve.

TECHNIC CRITERION

Nominal pressure:1.0¡«1.6MPa

Applicable medium: water, sewage, oil, gas etc.

Applicable temperature:¡Ü120¡æ

Main material of valve: ductile ironiron.

APPLICABLE STANDARDS

American Standard

Design to ANSI/AWWA C509

Face to face dimension to ASME B16.10-2000(ISO 3 series)

Flange and drilling To SME/ANSI B16.42-1998

British Standard

Design to BS5163BS5150

Face to face dimension to BS5163(ISO 3seriesISO19 series)

Flange and drilling To BS4504 part1(EN1092)

Germany Standard

Design to DIN3352

Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)

Flange and drilling to BS EN1092

Item Name of part Material Spec .

Resilient seated non rising stem British standard, outline and connecting dimensions according to BS5163,(ISO 3 series);BS4504.3.2-89(10BAR);

Resilient seated non rising stem Chinese standard, outline and connecting dimensions according to           GB12221-89(3)(ISO 3 series);GB/T17241.6-98(10 bar)

Resilient seated non rising stem British standard, outline and connecting dimensions according to BS5163,(ISO 3 series);BS4504.3.2-89(16BAR);

Resilient seated non rising stem Chinese standard, outline and connecting dimensions according to           GB12221-89(3)(ISO 3 series);GB/T17241.6-98(16 bar)

Resilient seated non rising stem Germany standard, outline and connecting dimension according to DIN3202(F4)(ISO 14 series);  BS EN1092.2(PN1.0MPa,10 bar){Figuration and connecting size of short series in Chinese standard are same with F4 series in Germany standard}

Resilient seated non rising stem Germany standard, outline and connecting dimension according to DIN3202(F4)(ISO 14 series);  BS EN1092.2(PN1.6MPa,16 bar){Figuration and connecting size of short series in Chinese standard are same with F4 series in Germany standard}
