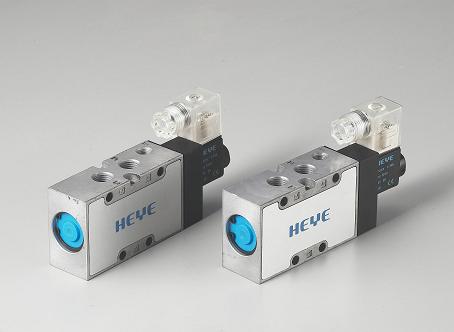

MLH(MFH) Solenoid valve
-solenoid-valve.jpg)
Company Info |
|
| Company Name | HENGYI PNEUMATIC CO.,LTD |
| Country/Territory: | Zhejiang China |
| Business Type: | | 1 |
| Number of Employees: | |
| Main Products: pneumatic cylinder solenoid valve air treatment unit pneumatic fitting | |
>> Details:
Model: MLH-5-1/4
Ways: 2 positions 5 ports
Rated Flow: 1300L/min(CV=1.32)
Port size: 1/4
Fluid:Cleaned Air
Working Pressessure:0.25Mpa-0.8Mpa
Ambient Temperature:-10-+60C
Action style: Solenoid Pilot and spring return
Hand control: Rotatable 180¡ãtorque 1mm(0.98kg.m)
Response time: Open 14ms±20%, Close 34ms±20%
Valve body material: Aluminium alloy
Seal material: PU,NBR
Valve cover material:PA6-GF50
Wiring method:DIN terminal box with lamp
Working Volatage: AC24V,AC110V,AC220V,DC12V,DC24V
Coil Power: AC5.5W,DC4.8W
Protection: IP65
